Dongle Life: A Deep Dive into the iBasso DC04 Pro

When smartphone manufacturers began stripping away the 3.5mm headphone jack, they marketed it as a "bold" leap forward, a necessary sacrifice to save internal space and push us toward a wireless future. For those of us who refuse to abandon our high-quality wired headphones, however, it felt less like progress and more like an ultimatum: settle for mediocre USB-C earbuds or find a dongle that actually works.

Initially, I viewed this as a hurdle, but it quickly transformed into an opportunity to upgrade my mobile listening setup. I wasn't looking to drop another small fortune as modern flagship phones are expensive enough as it is. While the standard Type-C to 3.5mm adapters, especially the apple one is quite good but they hit a ceiling very quickly. I needed more than just a connection; I wanted more power and, crucially, the option for a 4.4mm balanced output to drive my gear.

This specific set of requirements sent me down the "dongle DAC" rabbit hole. After weeks of comparing specs, reading forums, and weighing price-to-performance ratios, I finally narrowed my search down to the iBasso DC04 Pro. Having used it extensively as my daily driver, I’m ready to share experience and views about this dongle.

Look, Feel, and Build Quality: Engineering Meets Elegance

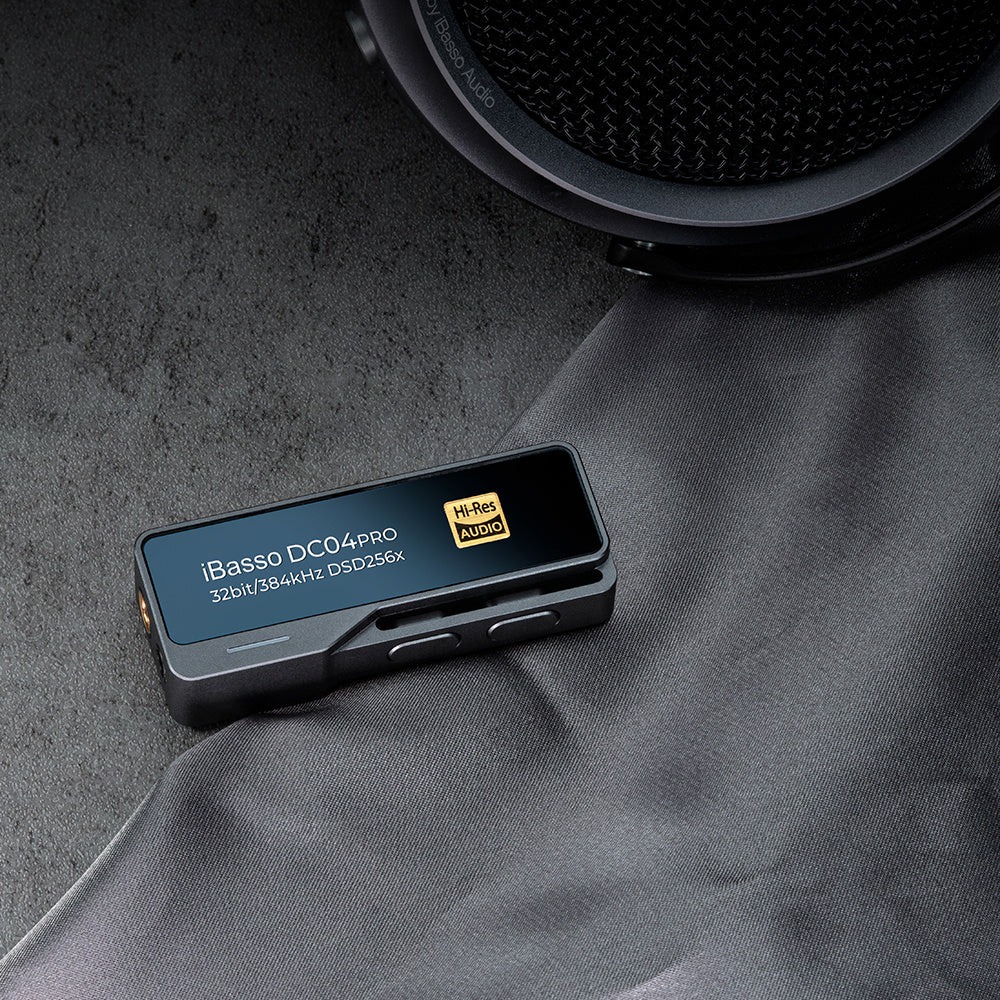

The iBasso DC04 Pro makes an immediate impression the moment you pick it up. It doesn't feel like a cheap plastic adapter; it feels like a precision instrument. The design departs from the boring "rectangular block" aesthetic seen in many competitors, opting instead for a sophisticated, contoured shape. The chassis is a solid piece of CNC-machined aluminum sandwiched between two sheets of tempered glass, giving it a premium weight and a "dense" feel that inspires confidence in its durability.

Physical Control and Feedback

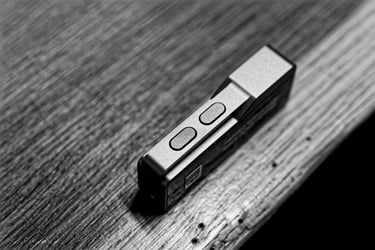

The standout feature is the inclusion of two physical volume buttons on the side of the device. While they aren't explicitly labeled with + or - symbols—requiring a quick "press and learn" moment to orient yourself—they are a game-changer for usability.

Most entry-level dongles are "slaves" to your phone’s software volume. This often results in a frustratingly coarse experience where one click is too quiet, but the next is uncomfortably loud. The DC04 Pro features independent volume control, allowing for granular precision. This is a total godsend when you are trying to find the exact "sweet spot" for highly sensitive In-Ear Monitors (IEMs).

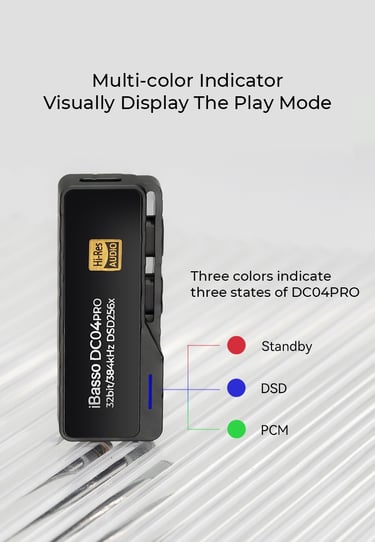

Additionally, iBasso included a small but vital LED indicator. This light changes color to show whether the device is on standby or actively playing music, allowing you to check the status of your playback without ever having to wake your phone screen.

Connectivity and Out-of-the-Box Experience

The device is built to be versatile, featuring two distinct output ports to accommodate different gear:

• 3.5mm Single-Ended: For your standard headphones and IEMs.

• 4.4mm Balanced: For power-hungry gear that benefits from increased voltage and lower noise.

iBasso is generous with their packaging, including both USB-C to USB-C and Lightning to USB-C cables. This ensures full support for both Android and iOS users right out of the box.

Pro Tip: While the included cables get the job done, they feel a bit thin compared to the robust build of the DAC itself. If you plan on using this as a daily driver in your pocket, I recommend investing in a high-quality, shielded replacement cable to ensure longevity and a more secure connection.

Under the Hood: The Engineering Behind the Sound

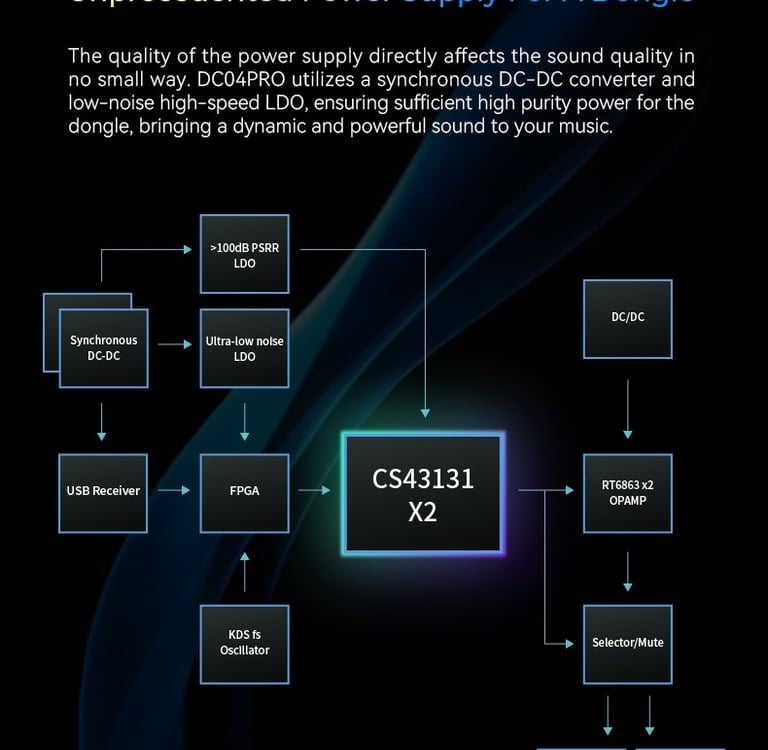

At the core of the iBasso DC04 Pro lies a formidable internal architecture designed to rival entry-level desktop gear. The heavy lifting is handled by a Dual Cirrus Logic CS43131 MasterHIFI™ series chipset. These flagship-grade chips are the reason the device can reproduce audio with such stunning transparency and detail.

However, iBasso didn't stop at the DAC chips. To ensure the signal remains pristine, they’ve integrated several high-end components usually found in dedicated digital audio players (DAPs):

• In-house FPGA & KDS Femtosecond Oscillators: These work in tandem to reduce jitter to negligible levels, ensuring the digital-to-analog conversion is perfectly timed.

• Ultra-low noise LDO & Power Management: This circuitry pushes the noise floor down into the nanovolt level, providing a "pitch-black" background where you hear only the music—no background hiss, even with sensitive IEMs.

• Dual RT6863 OPAMPs: These provide the necessary muscle, creating a 4-way fully balanced amplification circuit. This design delivers a massive 10V voltage swing, providing the high current required to drive demanding headphones with ultra-low distortion.

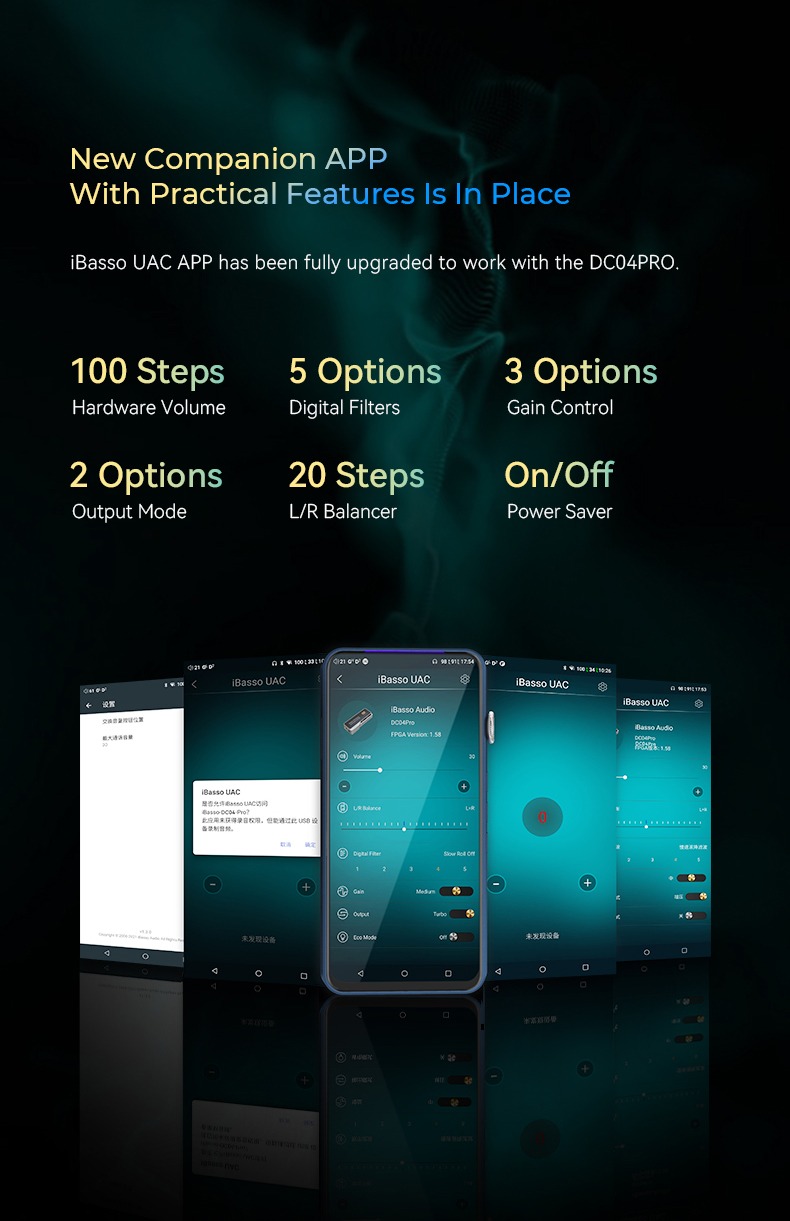

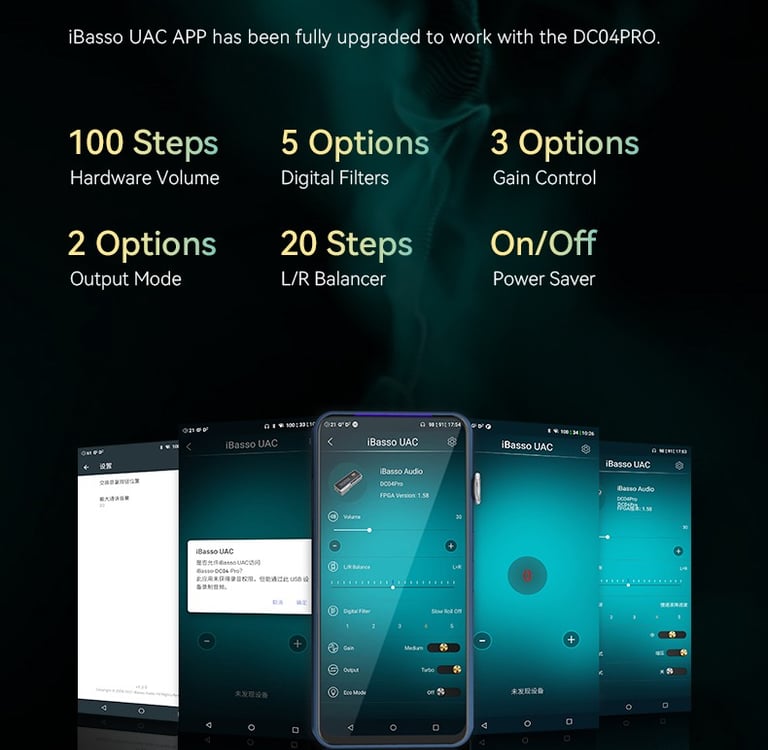

The iBasso UAC App: Precision at Your Fingertips

While the hardware is impressive, the real "granular control" is unlocked through the iBasso UAC companion app. It’s important to note that this app is currently exclusive to Android and Windows; as an Android user, this was a perfect fit for my workflow, but iOS users should be aware they’ll be relying on the default hardware settings.

The app transforms the DC04 Pro from a "plug-and-play" dongle into a fully customizable audio interface. Here is a breakdown of the specialized features you can toggle:

1. 100-Step Volume: Fine-grained hardware control

2. Far more precise than the standard 15-step phone volume.

2. 5 Digital Filters: Subtle sonic shaping

3. Allows you to tweak the "roll-off" to suit your preference.

3. 3-Stage Gain: Low / Medium / High

4. Matches the output power to the sensitivity of your gear.

4. 20-Step L/R Balance: Channel adjustment

5. Corrects for slight hearing imbalances or cable variations.

5. Turbo Mode: High-performance toggle

6. Maximizes current for power-hungry Planar IEMs.

6. ECO Mode: Power saving

7. Disables the secondary amp section to save phone battery.

By providing these options, iBasso allows you to dial in your exact preferences, whether you're trying to save battery during a long flight or pushing your Planars to their absolute limit in a quiet listening session.

Listening Experience: Bringing the Best Out of My Gear

A DAC’s specs are just numbers until you plug in your favorite pair of monitors. To see what the DC04 Pro could really do, I put it to the test with two very different sets of drivers: a demanding new planar flagship and a legendary studio staple.

Driving the Giant: Hidizs MP145 (Planar Magnetic IEMs)

I recently acquired the Hidizs MP145, and if you know these IEMs, you know they are physical and sonic giants. With their large 14.5mm planar drivers, they demand high current to truly shine. Plugging them into a standard phone jack or a cheap adapter usually results in a "thin" sound where the bass feels hollow and the expansive soundstage shrinks.

Switching to the 4.4mm Balanced Output on the DC04 Pro changed the game.

The Power: With Turbo Mode engaged via the app, the MP145 finally received the juice it craved.

The Bass: The low-end transformed from a simple "thump" into a deep, textured, and visceral rumble that planars are famous for.

The Soundstage: The MP145 is known for its "grand" scale, and the DC04 Pro’s dual CS43131 chips provided the separation needed to make the music feel like it was happening in a wide-open space rather than inside my head.

The Studio Reference: Audio-Technica M50x

Next, I moved to my Audio-Technica M50x. While these are 38-ohm headphones and relatively easy to drive, they are incredibly sensitive to the quality of the source. Using the 3.5mm output, the first thing I noticed was the black background. There was zero "hiss" or floor noise, even during quiet acoustic passages.

Sound Signature: Transparent or Colored?

A question I often see in the audiophile community is whether a DAC "colors" the music or stays true to the original recording. In my experience with the iBasso DC04 Pro, it leans heavily toward a natural and transparent profile. It doesn’t feel like it’s trying to rewrite the sound of my headphones; instead, it feels like it’s enhancing their inherent characteristics.

However, in my time with this device, I’ve realized that "transparent" doesn’t have to mean "sterile" or "boring." Here is how the DC04 Pro specifically handles the audio:

• The "Cirrus Logic" Musicality: The dual CS43131 chips are famous for a signature I would describe as Natural-Neutral. Unlike some DACs that can sound overly "clinical" or sharp—something often referred to as "digital glare"—the iBasso has a smoother, more organic delivery. It doesn't artificially boost the bass or sharpen the treble, but it adds a sense of body and weight that makes the music feel more "real" and less processed.

• Enhancing vs. Coloring: Rather than applying a "warm" or "bright" filter over everything, the DC04 Pro acts like a high-definition lens for my gear.

  • With my Hidizs MP145: It doesn’t "add" bass that isn't there; it simply provides the massive current those 14.5mm planar drivers need to reach their native sub-bass extension. Without this power, they can sound thin. The iBasso simply restores the rumble they were designed to have.

  • With my M50x: It tightens the imaging. The M50x can sometimes feel a bit "congested," but the DC04 Pro’s excellent channel separation makes the soundstage feel more airy and organized.

• A "Pitch Black" Background: Often, the "color" people hear in cheap dongles is actually just background noise or hiss. Because the DC04 Pro has an incredibly low noise floor (measured in the nanovolt level), it provides what I call a "pitch black" background. This lack of static makes the actual colors of my headphones stand out more vividly.

Ultimately, the DC04 Pro doesn't change the sound; it unlocks its full potential. It provides a clean, organic foundation that allows the true personality of whatever I'm plugging in to shine through.

The Reality Check: Heat and Battery Life

As much as I love the performance, there are two practical trade-offs to keep in mind if you plan on using this as your primary mobile setup:

Thermal Performance: During elongated listening sessions, the DC04 Pro’s aluminum chassis acts as a heatsink. It gets quite hot to the touch. It isn't anything dramatic or dangerous, but it is definitely noticeable if the device is sitting in your pocket or resting on your lap.

Battery Drain: Pushing high-end audio requires energy. When you unleash the device's full potential—using the 4.4mm balanced port with Turbo Mode on—it drains your phone's battery significantly faster than a standard adapter would.

If you are using this with your regular daily driver phone, you'll need to keep an eye on your percentage. It’s a price I’m willing to pay for the sound quality, but it's something to consider for long commutes where you might not have a charger handy.

Conclusion: The Sweet Spot of Portable Audio

After months of using the iBasso DC04 Pro as my daily driver, I’ve reached a clear verdict: it represents the "sweet spot" of the mobile audio market. While it obviously won't replace a high-end desktop stack with a dedicated power supply, it offers one of the most compelling experiences for a listener on the go.

The journey hasn't been without its practical realities. I’ve had to learn the unlabelled volume buttons by feel, and I've become mindful of the device's tendency to run warm and draw significant battery power when I’m pushing my Hidizs MP145 in Turbo Mode. I also quickly learned that the stock cables are the weak link in an otherwise premium package; I’d certainly recommend a more robust replacement for long-term durability.

However, these are small trade-offs for the performance on offer. In the world of dongles, the DC04 Pro sits at a critical juncture. Once you start looking at dongles priced significantly higher than this, you quickly hit the law of diminishing returns. At those higher price points, the battery drain on your phone becomes so aggressive and the device so bulky that you are better off investing in a dedicated Digital Audio Player (DAP) rather than a dongle.

The DC04 Pro avoids that trap. By providing Dual Cirrus Logic chips, granular 100-step volume control, and enough power to make planar drivers like the MP145 truly rumble, it gives you everything you need without overstepping its bounds. It doesn't color my music; it simply empowers my gear. For anyone looking to escape the mediocre sound of cheap adapters without breaking the bank or carrying a second "brick" in their pocket, this is a legitimate powerhouse that hits the perfect balance of price and performance.
